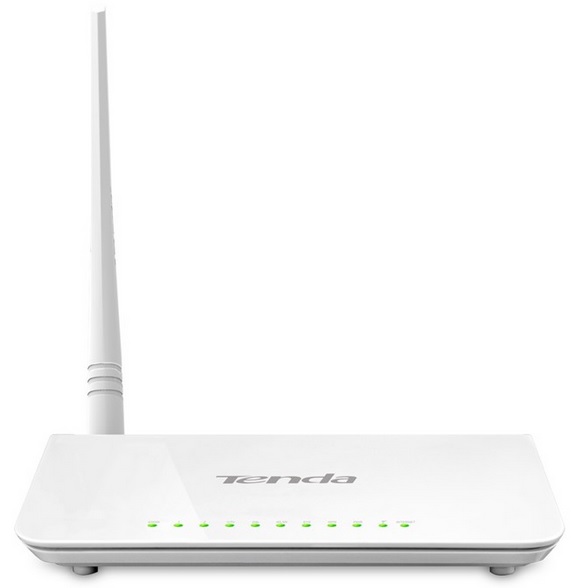

Tenda D151 Modem Router Wireless N150

Tenda D151 Modem Router Wireless N150

Caratteristiche Tecniche

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
IEEE 802.3, IEEE 802.3u
ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5
Interface
1* RJ11 port
3*10/100Mbps auto-negotiation (Auto MDI/MDIX) LAN ports;
1*10/100Mbps auto-negotiation WAN/LAN Interchangeable port (Auto MDI/MDIX)
Antenna 1* external omni-directional antenna
Button 1* Power
1*Reset/WPS
Power Input: 100-240V 50/60MHz
Output: 9V DC-1A
Temperature Operating Temperature: 0℃ ~ 40℃;
Storage Temperature: -40ºC~70ºC
Humidity Operating Humility: 10% ~ 90% RH Non-condensing
Storage Humility: 5% ~ 90% RH Non-condensing
Dimensions (L*W*H) mm 171.61mm*111.16mm*34.47mm
LED POWER, Internet, DSL, WLAN, LAN, SYS, USB,WPS
Transmission Media
Cat.5
Cat.5e
Cat.6
Telephone Line
Wireless Speed 150Mbps
Frequency 2.4GHz
Basic Features
Wireless Radio: On/Off
SSID Broadcast: On/Off;
WDS: On/Off
SSID Configurable
Channel: Auto, 1-13
Network Mode: 11b only, 11g only, 11n only, 11bg mixed, 11bgn mixed
Channel Bandwidth: Auto, 20MHz, 40MHz
Security
Wireless Access Control (Wireless MAC filter)
Wireless Security: On/Off
64-/128-bit WEP
WPA-PSK/WPA2-PSK
Operating Mode Wireless Router
WDS
Internet Connection Type
Dynamic IP,
Static IP
PPPoE
PPPoA
IPoA
DHCP Server Yes
Virtual Server Yes
Security Port/URL/MAC Filter
DDNS Yes
IPTV Yes
IPv6 Yes
TR069 Yes
VPN Passthrough PPPTP, L2TP, IPsec
Bandwidth Control Yes
Static Routing Yes
Logs Yes
VLAN 802.1Q VLAN
